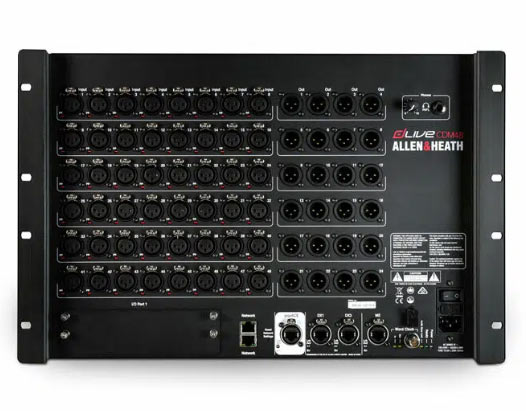

dLive MixRacks

All dLive MixRacks offer 128 input channels and 64 mix outputs with a configurable 64-bus architecture, class-leading 0.7ms latency and phase-aligned signal paths for maximum flexibility in all applications.

There are 7 sizes of dLive MixRack available, all feature the same mix engine but differ in the number of onboard analogue I/O, redundancy options and digital I/O card slots.

S Class MixRacks

gigaACE link to Surface (dual redundant)
2 DX links for I/O expansion (dual redundant)
3 I/O Ports – 128ch 96kHz each
Dedicated ME-1 48kHz port
2 Network ports
Wordclock BNC I/O
Add up to 28 DX I/O expanders via DX Hub modules or DX Link cards
Add up to 4 dLive Surfaces
– 1 via integrated gigaACE socket
– 3 via optional gigaACE cards
Hot-swappable PSU (dual redundant option)
