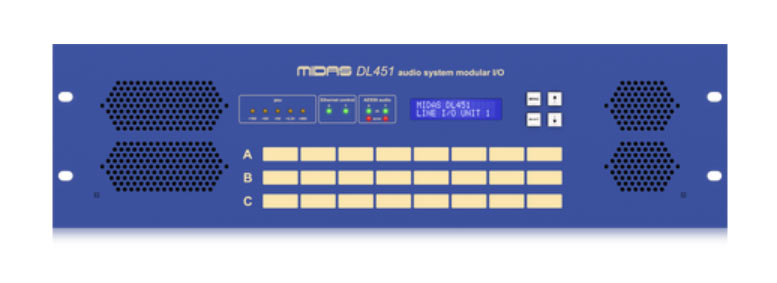

Midas DL451

DL451 is a 3U 19″ modular configurable rack mount I/O unit with provision for 3 DL4 Series interface cards and up to 24 audio inputs and 24 audio outputs.

With two AES50 network ports and two Ethernet control ports providing dual redundancy, plus a MIDI Interface (In, Out, Thru), the DL451 is the ideal partner to all Midas PRO Series digital consoles, enabling a digital snake connection from Front of House to stage or to provide additional local I/O at the console mix position.

• Modular stage box accepts 3 DL4 series I/O cards
• Up to 24 audio inputs and 24 audio outputs
• 24 bit audio operation with 96 kHz sample rate
• Remote operation up to 80 m via CAT5/5e cable
• All settings programmable from front panel controls or console
• PSU status indicator LEDs and configuration LCD display on front panel
• Supports dual redundant AES50 (X and Y) networks
• Two GPIO 25-pin D-type opto-isolated connectors for external device control
• MIDI In, Out and Thru connectors
• Features Neutrik etherCON AES50 network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
• Designed and engineered in the U.K.
